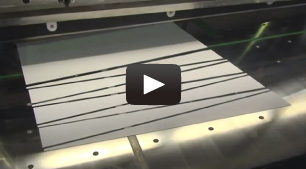

	Movie clip showing odd-angle cutting of stock of large paper cutter eRC-200DX

【Engineering force】 Cutting machine manufacturer that can meet requirements of various materials (workpieces) readily in addition to paper.

【Reliability and records】 Cutting machine manufacturer boasting number 1 sales in Japan and reputed all over the world.

【Safety】 Manufacturer of user-friendly, safe cutting machine.

【Labor-saving】 Manufacturer of cutting machine realizing labor cutting under computer control.

【Adaptability】 Cutting machine manufacturer having a solid maintenance system.

Wood

Wood paper for laminated plywood

The material is cork

CFN

Paper and paper craft

Paper

Twisted paper string ornament

Packing

Hard press board

Felt

Wool felt

Saran rack filter

Cloth felt

Plastic

Honeycomb

Plastic cardboard

Polyester film

Paulownia

CFRP

Paper honeycomb material

Rubber

Vinyl

Glass fiber

Urethane resin

Urethane foam

Rubber

Soft vinyl sheet

Glass fiber mat

Metal

Metal deposition sheet

PS board mat

Soft

Hard

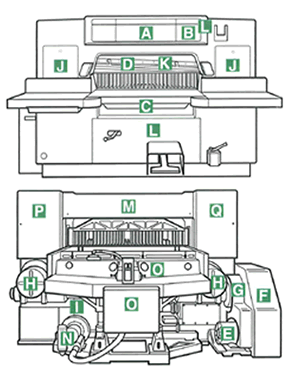

A Operation panel 1

B Operation panel 2

C Knife panel

D Lighting, cut line

E Main motor

F V-belt

G Knife drive (clutch)

H Knife drive (gear box)

I Knife drive (spindle)

J Knife drive (lot assembly)

K Knife installation panel

L Clamp drive

M Clamp restoration device

N Air function

O Backgauge mechanism

P Electric box 1

Q Electric box 2

R Safety function

S Knife removal/installation function

T Main body and leveling block

U Knife

V Cutting performance

W Manual mode function

X Semi-automatic mode function

Y Full automatic mode

Z Spare parts

A.Operation panel 1

Inspection item	Conditions	Replacement years	Inspection method
Damaged panel or cover	membrane key panel	5 years
Loose or damaged joint of electric wiring
Loose or damaged key switch
Function of key switch		5 years	Run
Battery condition		1 year	Replacement needed

B.Operation panel 2

Inspection item	Conditions	Replacement years	Inspection method
Action of monitor indication			Run
Damaged panel or cover
Loose or damaged joint of electric wiring
Counter function		5 years	Run
Printed circuit board relay		3 years

C.Knife panel

Inspection item	Conditions	Replacement years	Inspection method
Condition of knife switch		3 years	Measuring machine
Condition of knife switch actuator		3 years
Loose or damaged joint of electric wiring
Other switch functions		5 years	Run

D.Lighting, cut line

Inspection item	Conditions	Replacement years	Inspection method
Condition of cut line
Condition of cut line bulb		1 year
Condition of cut line holder socket		3 years
Loose or damaged joint of electric wiring
Condition of lighting mount
Condition of lamp and glow bulb		1 year

E.Main motor

Inspection item	Conditions	Replacement years	Inspection method
Foulness
Sound			Vibration
Hearing	Bearing	10 years	Touching

F.V-belt

Inspection item	Conditions	Replacement years	Inspection method
Looseness or damage		3 years

G.Knife drive (clutch)

Inspection item	Conditions	Replacement years	Inspection method
Clearance between lining and rotor in shutoff state		5 years	Measuring machine
Clearance between armature and coil in shutoff state			Measuring machine
Clearance between armature and coil in power-on state			Measuring machine
Remaining lining thickness	Replace if 1mm or less		Measuring machine
[Clutch] Dirty lining
[Clutch] Damaged or corroded coil input terminal
[Clutch] Play of flywheel	Bearing	10 years
[Clutch] Play of worm shaft		10 years

H.Knife drive (gear box)

Inspection item	Conditions	Replacement years	Inspection method
Oil leaks
Noise			Vibration
Oil level and contamination
Vibration	Oil seal and bearing	10 years	Touching

I.Knife drive (spindle)

Inspection item	Conditions	Replacement years	Inspection method
Cracks, damage
Condition of worm shaft joint section

J.Knife drive (lot assembly)

Inspection item	Conditions	Replacement years	Inspection method
Handle operation state			Operation
Damaged knife installation panel linkage section		10 years
Worn or damaged crank linkage section		10 years
Loose or damaged shear bolt		1 years
Loose or damaged shear bolt fault detection switch		3 years	Measuring machine
Damaged shear cable		3 years
Loose or damaged shear cable protective spring mount		3 years

K.Knife installation panel

Inspection item	Conditions	Replacement years	Inspection method
Lubrication of slideway
Damaged knife installation face
Worn or damaged piece		10 years

L.Clamp drive

Inspection item	Conditions	Replacement years	Inspection method
Abnormal noises or excessive vibration of pump	Pump flange assembly	10 years	Vibration
Oil level and contamination		1 year
Dirty or damaged strainer		2 years
Oil leaks
Leakage from hose or pipe, loose or damaged mount		10 years
Loose or damaged electric wiring joint of solenoid valve
Loose valve mount		10 years	Retighten
Loose clamp pedal mechanism mount			Retighten
Damaged clamp pedal limit switch		3 years	Retighten
Damaged clamp lever		8 years
Worn or damaged clamp bar		8 years
Clamp balance
Lubrication of guide plate slideway
Loose or damaged clamp pulsar mount		5 years	Retighten
Loose or damaged slit mount			Retighten
Function of limit switch of upper clamp limit		5 years	Run
Function of clamp pressure regulation function		10 years	Run
Pressure fault indication function		10 years	Measuring machine
Worn or damaged clamp bury-in plate		5 years
Damaged false clamp
Condition of false clamp installation bench

M.Clamp restoration device

Inspection item	Conditions	Replacement years	Inspection method
Loose mount of compression spring assembly			Retighten
Abnormal noises from compression spring assembly		5 years	Vibration
Worn or damaged chain		2 years
Worn or damaged chain wheel		4 years
Condition of tension spring		2 years

N.Air function

Inspection item	Conditions	Replacement years	Inspection method
[Motor] Foulness
[Motor] Sound
[Motor] Vibration	Bearing	5 years	Vibration
[Motor] Dirty, clogged or damaged filter of blowout port		6 months	Touching
[Motor] Dirty, clogged or damaged air cleaner		1 year
Activation of selector solenoid		3 years	Run
Damaged hose or piping		8 years
Damaged blowout nozzle		8 years

O.Backgauge mechanism

Inspection item	Conditions	Replacement years	Inspection method
[Motor] Foulness
[Motor] Sound			Vibration
[Motor] Vibration	Bearing	8 years	Touching
[Motor] Worn or damaged brush		4 years
Brake application
Dirty brake lining		8 years
Loose or damaged joint of electric wiring			Retighten
Loose or damaged timing belt (or V-belt)		4 years
Loose or damaged pulley mount
Loose fixed side of ball screw and lubrication			Retighten
Damaged metal on moving side of ball screw and lubrication condition
Loose linkage between ball screw and backgauge			Retighten
Loose encoder mount	Encoder	5 years	Retighten
Loose or damaged joint of encoder wiring
Loose or damaged coupling		5 years	Retighten
Function of proximity switch point 305.0		5 years	Run
Function of proximity switch point 605.0		5 years	Run
Activation of forward/backward limit controlled stop limit switch		5 years	Run
Condition of guide roller		3 years
Loose or damaged backgauge comb support mechanism			Retighten
Backgauge adjustment and loose lock mechanism			Retighten
Function of lubrication pump			Run
Dirty or damaged groove tape		3 years
Dirty groove tape guide roller		3 years
Worn or damaged handle section

P.Electric box 1

Inspection item	Conditions	Replacement years	Inspection method
Loose or damaged joint of electric wiring			Retighten
Installation condition of printed circuit board
Printed circuit board relay		3 years	Run
Condition of battery		1 year	Measuring machine
Condition of fuse		2 years
Dirty box inside
Condition of cover	Filter	1 year

Q.Electric box 2

Inspection item	Conditions	Replacement years	Inspection method
Loose or damaged joint of electric wiring			Retighten
Installation condition of printed circuit board
Printed circuit board relay		3 years	Run
Condition of fuse		2 years
Condition of electromagnetic switch		5 years	Run
Condition of relay and timer		3 years	Run
Dirty box inside
Condition of cover

R.Safety function

Inspection item	Conditions	Replacement years	Inspection method
Guard type safety device			Run
Condition of phototube type safety device		5 years	Run
Single-process single-stop mechanism			Run
Two-hand simultaneous pushing safety mechanism			Run
Activation of clamp hold function			Run
Condition of safety seal
Condition of cycle cam
Condition of cycle cam limit switch		4 years	Measuring machine
Condition of knife carrier stopper mechanism
Function of knife TDC indication function
[Safety cover] Main motor section
[Safety cover] Clamp section
[Safety cover] Backgauge section
[Safety cover] Ball screw section
[Safety cover] Spindle connecting rod section
[Safety cover] Gear box section
[Safety cover] Feed motor section
[Safety cover] Knife carrier pulling rod section (L)
[Safety cover] Knife carrier pulling rod section (R)
[Safety cover] Cylinder section
[Safety cover] Worm shaft section (R)
[Safety cover] Top of main body

S.Knife removal/installation function

Inspection item	Conditions	Replacement years	Inspection method
[Lifter] Condition of lift motor		5 years
[Lifter] Activation of lift function
[Lifter] Damaged knife linkage		5 years
Damaged knife removal/installation bolt mount
Condition of cutting edge seal
Damaged removal/installation holder
Deteriorated or damaged removal/installation handle, wrench and/or bolt
Function of high-pressure ball valve		10 years	Run
Function of throttle valve		10 years	Run

T.Main body and leveling block

Inspection item	Conditions	Replacement years	Inspection method
Levelness			Measuring machine
Side guide/Front plate condition			Measuring machine
Condition of cutting stick mount
Loose or damaged incoming power supply terminal			Retighten
Condition of central lubrication pump			Run
Damage or installation condition of lubrication piping		10 years
Lubrication condition
Damaged or storage condition of operation manual

U.Knife

Inspection item	Conditions	Replacement years	Inspection method
Storage condition
Damaged screw section
Bending condition

V.Cutting performance

Inspection item	Conditions	Replacement years	Inspection method
Parallelism between knife and backgauge			Run
Perpendicularity between side guide and knife			Run
Perpendicularity between side guide and leveling block			Run
Actual size			Run

W.Manual mode function

Inspection item	Conditions	Replacement years	Inspection method
Knife start and single-cycle stop			Run
Clamp descent and return condition			Run
Backgauge start and stop			Run
Table air activation			Run

X.Semi-automatic mode function

Inspection item	Conditions	Replacement years	Inspection method
Knife start and single-cycle stop			Run
Clamp descent and return condition			Run
Backgauge start and stop			Run
Table air activation			Run
Single-cycle motion of mechanism section based on registered data			Run

Y.Full automatic mode

Inspection item	Conditions	Replacement years	Inspection method
Clamp descent and return condition			Run
Continuous motion of mechanical section based on registered data			Run
Function of full automatic mode operation view			Run
Stop of full automatic motion			Run
